DETAILED PARAMETERS

LSP520/LSP650 Dough Sheeter with Floor Type

Description:

1) Large roller opening(40mm) with large hard chorme rollers.

2) Very large dough weight capacity.

3) Steel,stainless steel & aluminum component and casings.

4) Easy to remove and clean scraper assemblies with low replacement cost.

5) Safety guards with internal safety switching.

6) Quality food  grade conveyor belt. allows easy access in folded position to conveyor drive-roller for cleaning.

More Specification of Dough Sheeter:

Model	LSP520	LSP650	TSP520	TSP650
Machine Size	2550x880x1180mm	2950x1100x1180mm	2080x880x620mm	2950x1100x620mm
Woking Position	2550/1180mm	1950/1180mm	2080/620mm	2950/620mm
Resting Posiition	750/1600mm	1200/1780mm	750/840mm	1200/840mm
Conveyor Belt Size	500x2000mm	630x2400mm	500x2000mm	630x2400mm
Roller Adjustable Gap	1-35mm	1-35mm	1-35mm	1-35mm
Motor Power	550W	750W	550W	750W
Voltage	220/380V/50Hz	220/380V/50Hz	220/380V/50Hz	220/380V/50Hz
Max Dough Capacity	5kgs	6.5kgs	5kgs	6.5kgs
Net Weight	190kgs	225kgs	125kgs	190kgs

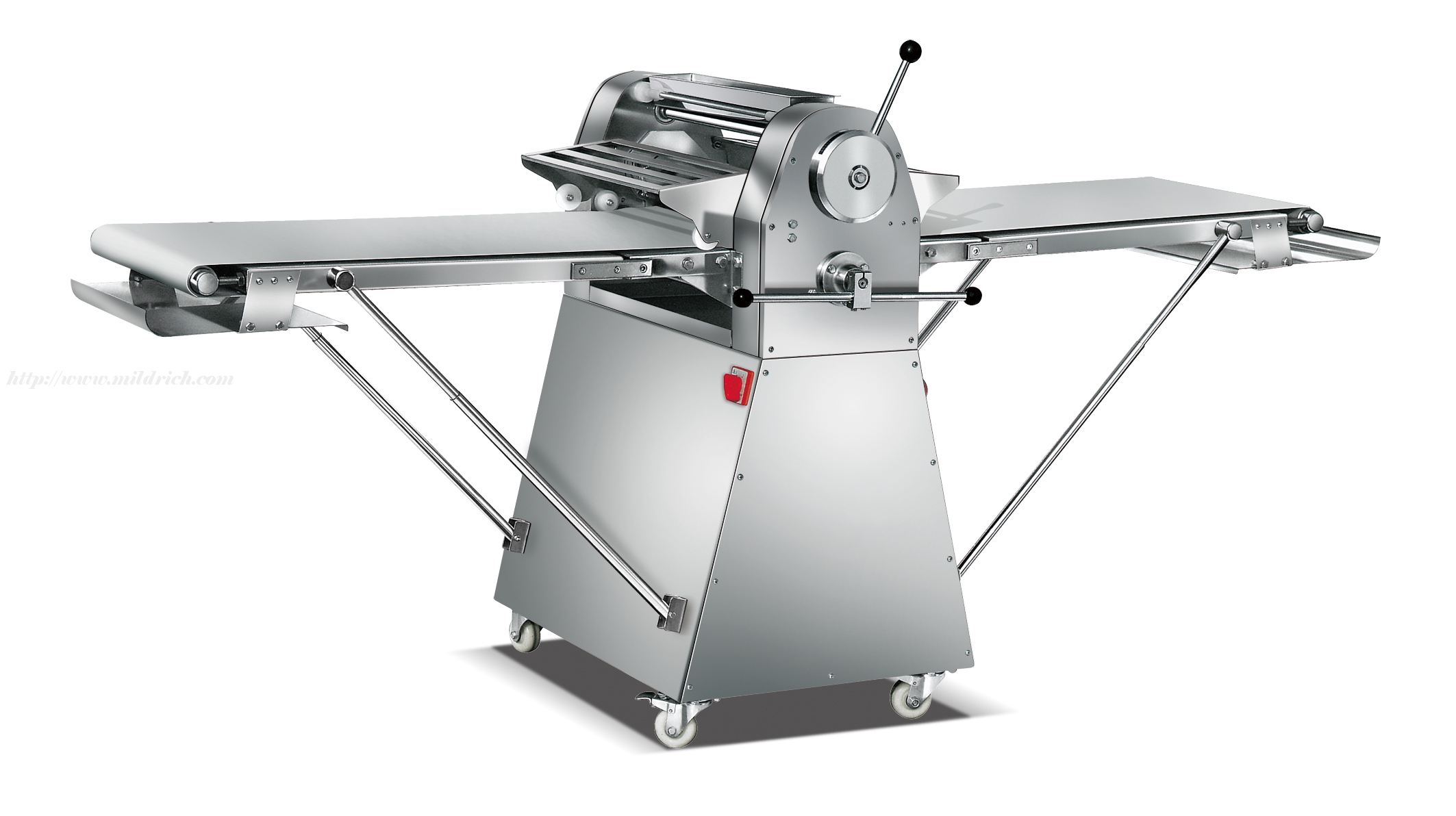

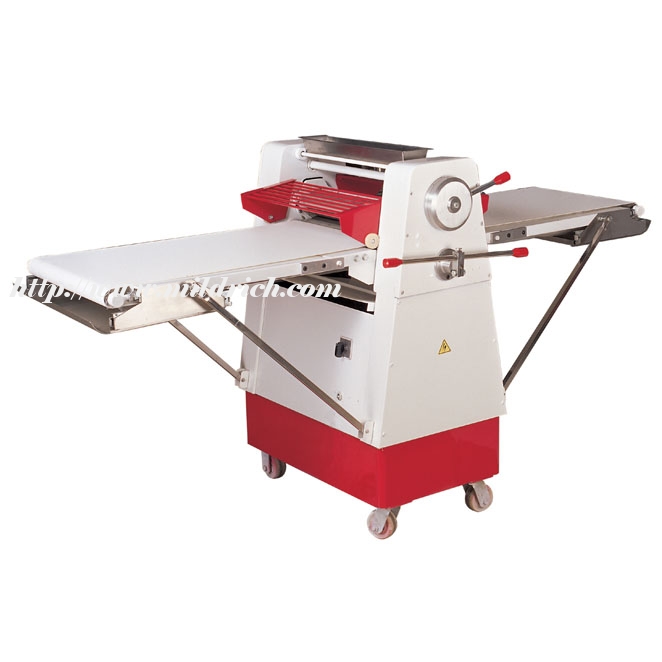

Picture of Dough Sheeter:

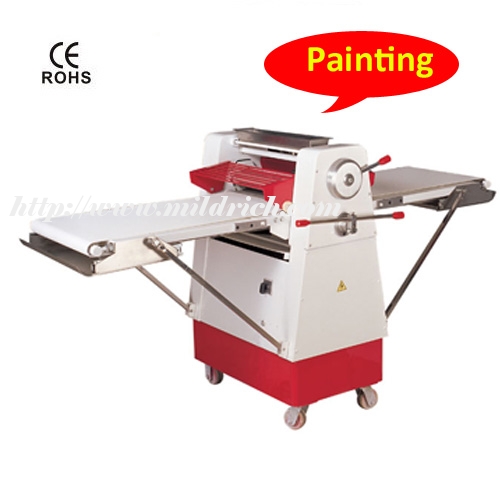

Painting Surface:

More Details:

1) Payment terms: L/C with Famous International Bank; T/T,Moneygram,Western Union and Casher are available.

2) Delivery time: 3-15 days for sample order; 15-30 days after payment,it depends on your quantity.

3) After-sales Service: 1-year after sales service. Technical support for lifetime.

4) 3% free spare parts shipping together with you order.

If you have any questions, please feel free to let us know.
